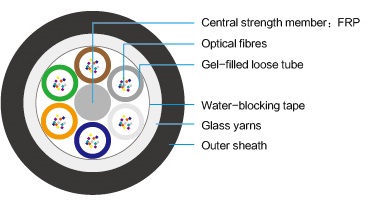

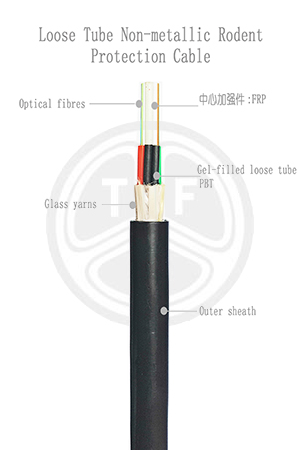

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A
fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the
fillers) are stranded around the strength member into a compact and circular core. And then the core wrapped
with the swelling tape longitudinally. Then the core is covered with a layer of glass yarn as strength
member. The cable is completed with a PE outer sheath.
Characteristics：
1.Excellent mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fibre and resist the water
3.Loose tube stranding cable core ensures the cable structure stable
4.Dry cable core design, better Anti-water by the swell tape
5.Glass yarn strength member enlarge the tensile strength and make the cable rodent protected
6.Outer sheath protects cable from ultraviolet radiation
7.Optional flame retardance outer sheath
Installation：Duct, Non self-supporting aerial
Applications：LAN communication and FTTx
Standards：IEC 60794-3-10
Temperature Range：Transportation：-40~+70℃；Installation：-5~+50℃；In use：-40~+70℃
